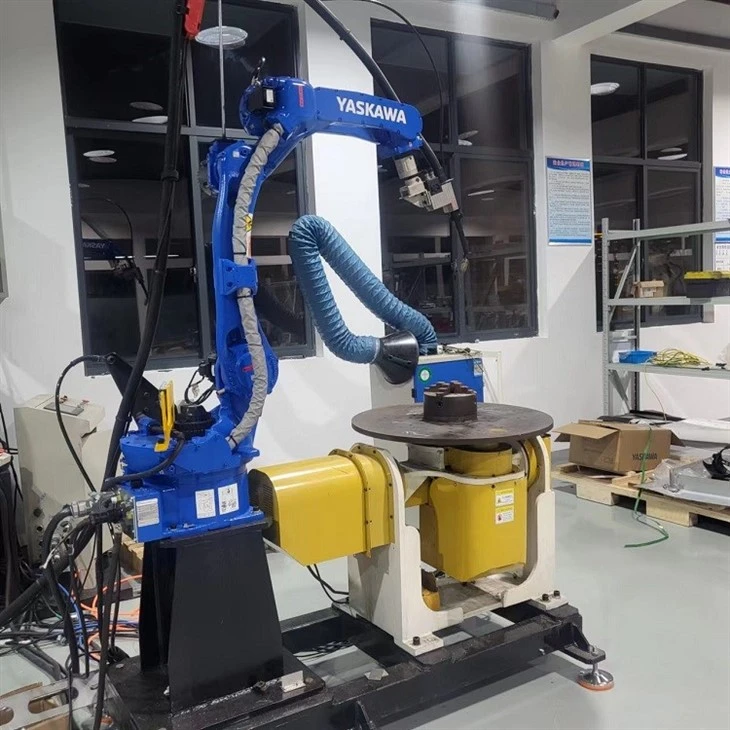

Compact Dual-axis Positioner
Products Description
The compact dual-axis positioner enables the ideal machining of workpieces up to 500 kg and offers an ideally high degree of freedom for system planning.
Product video display
Features
Compact and flexible：Due to its compact design and small footprint, it can be easily and flexibly integrated to save space.
Free installation location：Can be installed in any position without angle restrictions.
High precision：Each axis works precisely and reliably with a position repeatability of 0.009°. The large tilt range of +/- 135° and the narrow contour continuously ensure ideal positioning and accessibility of the workpiece (e.g. when welding, milling or bonding) .
Technical Parameters
|
Name |
Compact dual-axis positioner |
|
Model |
AC-SZCO |
|
Specified load |
500kg(customizable) |
|
Standard rotation range |
unlimited |
|
Tilt range |
+/- 135° |
|
Axis 1 position repeatability |
0.009° |
|
Axis 1 rotation time (180°) |
1.9 s |
|
Axis 2 position repeatability |
0.009° |
|
Axis 2 rotation time (180°/360°) |
1.8 s / 3.1 s |
|
Feeding height |
500mm |
|
Security |
The product has passed strict safety certification and has multiple safety protection mechanisms such as emergency stop and overload protection to ensure the safety of welding operations. |
Applicable fields
The compact dual-axis positioner is particularly suitable for scenes with limited space. The machine can realize multi-axis rotation and precise adjustment of the workpiece, providing greater freedom and high precision for the welding process.
The positioner is optimized for workpiece manipulation in arc welding, thermal cutting and other applications. All axes can be fully coordinated with the robot during programming and operation.
Precautions
Before use, please read the product manual carefully and use it according to the operating requirements.
When operating the workstation, ensure that the operator has relevant skills and experience.
If any abnormality is found during use, please stop using it immediately and contact after-sales service.
After long-term use, please pay attention to heat dissipation to avoid damage to the device due to overheating.
Summary: The compact dual-axis welding positioner delivers outstanding performance in limited spaces with its portability and high accuracy. It provides a flexible and efficient solution for small welding workstations, helping users achieve high-quality completion of welding tasks in limited space. If you are interested in our compact dual-axis positioner, please feel free to contact us and we will serve you wholeheartedly!
We cherish and thank you for any inquiries. We sincerely look forward to your inquiries, visits and inspections, and sincerely hope to become your long-term and reliable partner in China.
