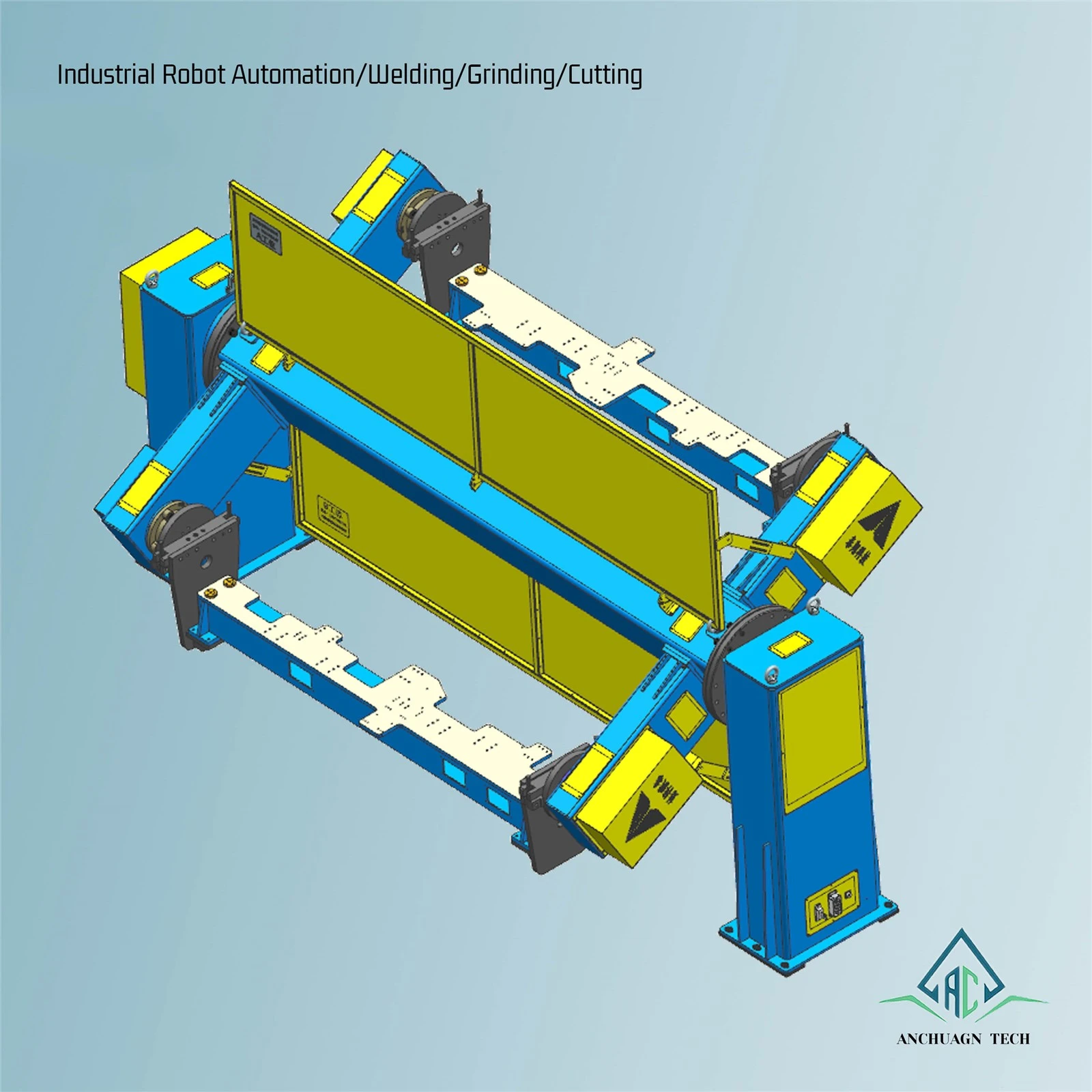

Three-axis Flip Positioner



The three-axis flip positioner has three independent flip axes and a dual-station structure. This positioner form is designed to obtain the smallest possible external size and a space-saving structure to achieve independent flipping of workpieces on multiple axes. It also supports dual-station operation with load capacities of 500 and 1,000 kg respectively, providing greater freedom and high precision for the welding process.

Three flip-axis technology: The equipment adopts three independent flip-axis technology, allowing the welding workpiece to be independently flipped on multiple axes. This design gives the positioner greater flexibility to adapt to various multi-directional welding tasks.

Compact construction: The positioner is designed to achieve the smallest possible external dimensions and a space-saving construction. This enables long workpieces to be processed in a particularly space-saving manner.

Dual-station design: The equipment is designed with a dual-station structure, which allows the robot to work on one side and the operator to load and unload on the other side without interfering with each other. The dual-station design improves work efficiency, reduces welding cycles, and improves production capacity.

Safety guarantee: The product has passed strict safety certification and has multiple safety guarantee mechanisms such as emergency stop and overload protection to ensure the safety of welding operations.

This three-axis flip positioner is widely used in shipbuilding, automobile manufacturing, heavy machinery welding and other fields. Especially suitable for welding projects with long workpieces.
 The positioner is optimized for workpiece manipulation in arc welding, thermal cutting and other applications. All axes can be fully coordinated with the robot during programming and operation.

Before use, please read the product manual carefully and use it according to the operating requirements.
 When operating the workstation, ensure that the operator has relevant skills and experience.
 If any abnormality is found during use, please stop using it immediately and contact after-sales service.
 After long-term use, please pay attention to heat dissipation to avoid damage to the device due to overheating.

Summary:The three-axis flip-up dual-station positioner provides efficient and diverse solutions for welding tasks through advanced technology and flexible design. Its independent flip axis and dual-station structure make it perform well in long workpiece welding projects, bringing users greater production flexibility and work efficiency.If you are interested in our three-axis flip positioner, please feel free to contact us and we will serve you wholeheartedly!

We cherish and thank you for any inquiries. We sincerely look forward to your inquiries, visits and inspections, and sincerely hope to become your long-term and reliable partner in China.
