Fully Automated Flexible Intelligent Production Line For Door Panels

This fully automated flexible intelligent production line automates the entire process: roll feeding → precision leveling → high-speed laser cutting → door panel bending → laser welding (reinforcing ribs/corners/pins) → robotic palletizing.

Whether your product is an air compressor protective door panel, fire door/security door, elevator door panel, communication cabinet door, or appliance (refrigerator/dishwasher) panel, as long as it involves leveling, bending, welding, and palletizing metal sheets, this production line can perform one-click changeovers using a recipe library, completing product switching in a very short time.

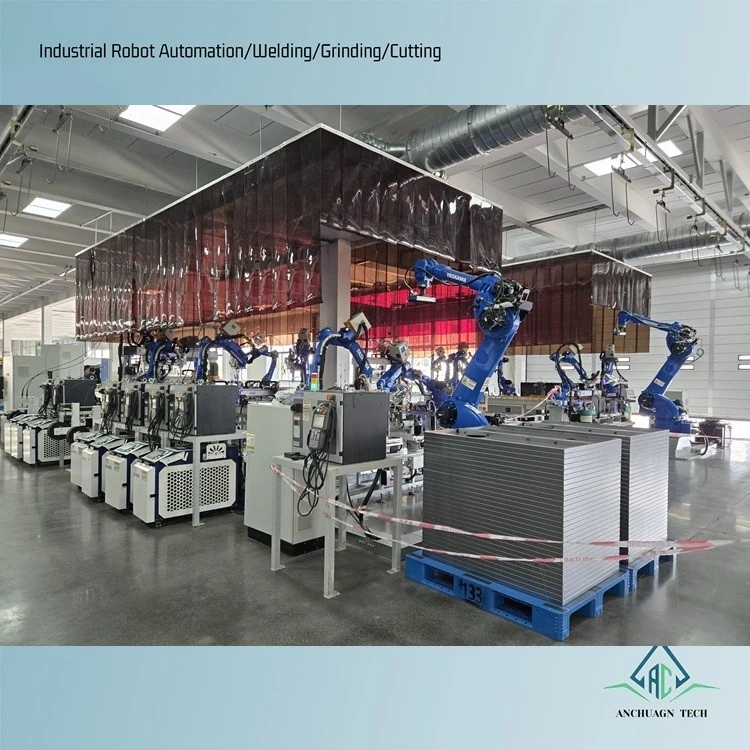

This fully automated flexible intelligent production line for door panels demonstrates its complete operational process, encompassing the following 14 core workstations:

▸1. Loading Trolley: High-tonnage load-bearing design, adaptable to various widths and thicknesses of cold-rolled/hot-rolled/galvanized coils, automatically centering and feeding them in.

▸2. Precision Uncoiling Machine: Hydraulic constant tension uncoiling effectively prevents material from loosening and scratching the surface-crucial for door panels with high appearance requirements.

▸3. Leveling Feeder: Adaptively adjusts leveling parameters for different plate thicknesses (0.8mm~2.0mm), eliminating internal stress in the coil, ensuring the flatness of the finished product, and providing a perfect benchmark for bending and welding.

▸4. High-speed laser cutting machine: High-power laser rapidly cuts various door panel shapes, ventilation holes, handle holes, hinge slots, and irregularly shaped weight-reduction holes, producing smooth, burr-free edges without the need for secondary grinding.

▸5. Inclined roller unloading machine: After cutting, the sheet metal is smoothly transferred via an inclined roller, avoiding surface scratches caused by surface friction.

▸6. Bending center: Fully servo-controlled, completing four-sided bending and flanging in one positioning step, with an angle accuracy of ≤±0.1°, ensuring uniform and consistent assembly gaps between different door panels and corresponding cabinets.

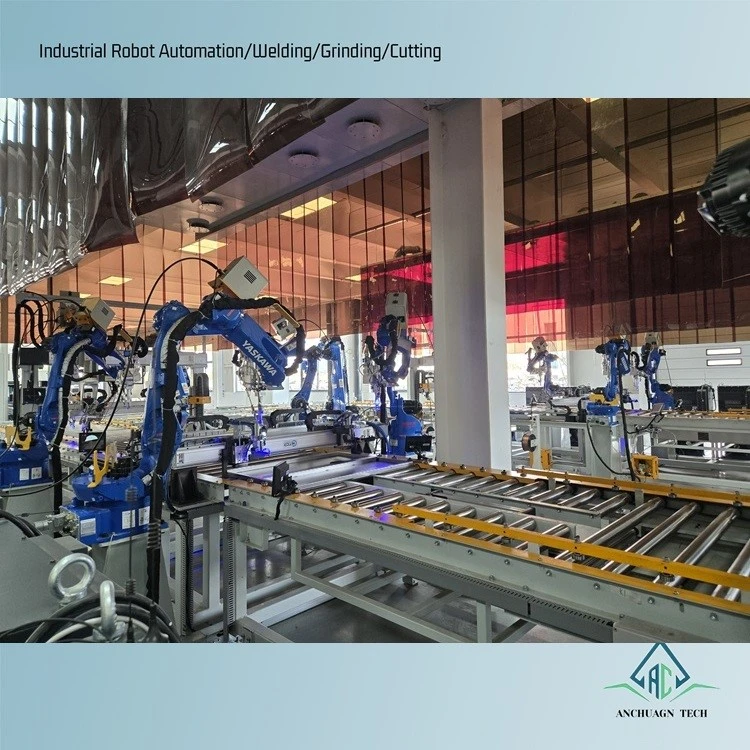

▸7. Roller conveyor: Multi-segment independently speed-adjustable roller line intelligently conveys panels according to a rhythm, ensuring smooth transitions and preventing material accumulation.

▸8. Door panel positioning station: Pneumatic baffles and side-push clamping mechanisms precisely fix the bent panels to the welding reference, with a positional error of ≤±0.2mm.

▸9. Specialized Laser Welding Machine for Reinforcing Ribs: Performs continuous laser welding on internal reinforcing ribs with varying quantities (no ribs, 1 rib, 2 ribs). Low laser heat input and no indentations on the back ensure a clean and aesthetically pleasing front panel, meeting the high surface quality requirements of various exterior components.

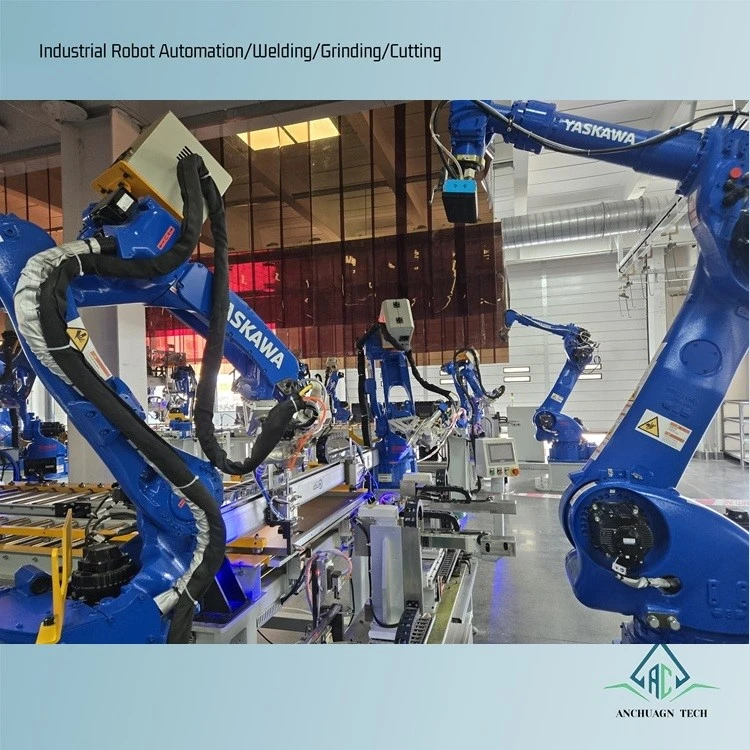

▸10. Robot Laser Welding Equipment for Door Panel Corners: Four robots work together to perform laser sealing welding on the four corners of the door panel, resulting in continuous, dent-free welds.

▸11. Door Pin Conveying and Positioning: An automatic vibratory feeder precisely delivers each pin to its welding point.

▸12. Robot Laser Welding Equipment for Pins: Performs circumferential welding to reinforce pins, ensuring sufficient weld penetration without damaging the base material, guaranteeing the pins will not loosen or fall off during long-term use.

▸13. Robot Handling and Palletizing of Finished Products:Yaskawa six-axis robots equipped with specialized adaptive suction cup grippers automatically pick up finished products and neatly stack them according to set layers, with no contact scratches throughout the process.

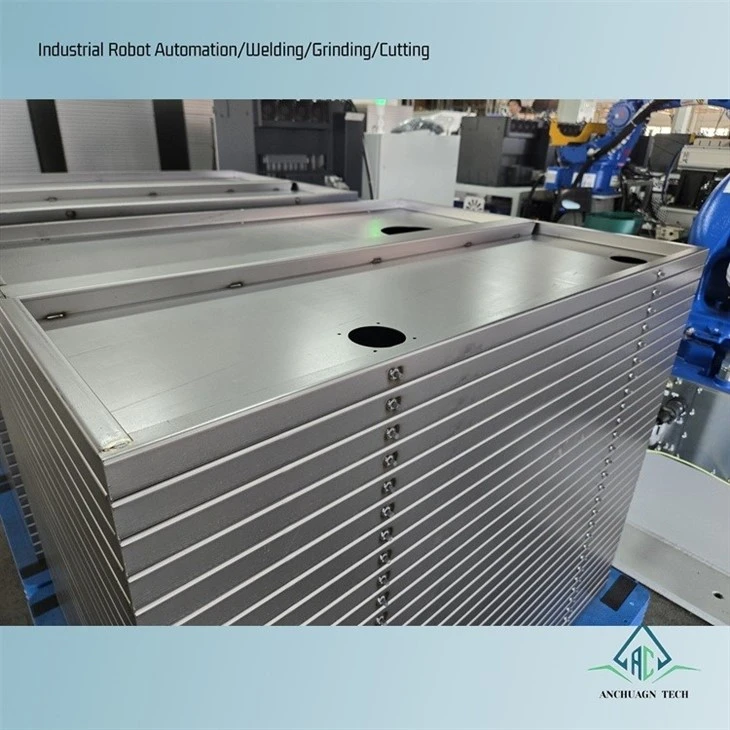

▸14. Batch Finished Product Area: Various door panels are neatly stacked, with smooth welds, no surface deformation, and clear edges, ready for direct entry into the painting or final assembly process.

--External protective door panels and maintenance door panels for air compressors/compressors

--Fire doors and security doors (entrance door panels)

--Elevator car door panels and landing door panels

--Communication and power outdoor cabinet door panels and distribution box door panels

--White goods such as refrigerator side panels, dishwasher panels, and washing machine lids

--Key Selling Points: The fully automated flexible intelligent production line for door panels relies on a formula library management system. The thickness, dimensions, reinforcing rib layout, bending angle, and welding trajectory of different products can all be digitally stored. Changeover time can be controlled within 15-20 minutes, truly achieving flexible manufacturing of "one production line, hundreds of door panels.

--Low-Manpower Flow: From roll material to finished product stacking, only 1-2 inspection personnel are needed, saving over 70% of labor.

--Zero Deformation Laser Process: Laser welding energy is concentrated, and the heat-affected zone is narrow, making it particularly suitable for high-requirement door panels that require flatness and no grinding.

--Zero Damage to Appearance: All material transitions and clamping are designed to prevent scratches, resulting in a smooth, scratch-free finished product surface.

--Reliable Welding Strength: Controllable penetration depth and dense weld points meet the fatigue life requirements of various door panels under long-term vibration, opening and closing, and load-bearing conditions.

Changzhou Anchuang Intelligent Equipment Co., Ltd. specializes in the integration of laser welding automation and sheet metal forming, possessing extensive experience in delivering fully automated flexible intelligent production lines for door panels across various industries. We provide a comprehensive one-stop service, from process verification, production line layout simulation, manufacturing, assembly, debugging, training, and after-sales support.

Summary:Changzhou Anchuang Intelligent Equipment Co., Ltd. specializes in robotic welding automation, providing one-stop services from solution design and production line integration to after-sales support. Global customers are welcome to inquire about customization.We are not only a manufacturer of high-end equipment, but also your strategic partner for achieving intelligent manufacturing transformation. From in-depth needs analysis and customized solution design to lean on-site installation, comprehensive employee training, and lifetime after-sales support.

We cherish and thank you for any inquiries. We sincerely look forward to your inquiries, visits and inspections, and sincerely hope to become your long-term and reliable partner in China.
